S4600
S4600 je zcela nová řada plně gigabitových přístupových či agregačních L2 switchů v široké škále verzí od 10 portového po 52 portový model s nabídkou PoE i non-PoE verzí. Tato řada svojí cenovou politikou a dostupnými verzemi postupně nahrazuje doprodávající se řady 3650/3950 a 4500. Funkcemi se jedná o velice podobné modely jako u dosluhující řady DCS-4500, tedy plně řiditelný switch s podporou všech nejčastěji používaných L2 protokolů, s novým designem těla - kdy 10 a 28 portové modely mají vše dostupné z přední části a jsou bezvětráčkové.
Klíčové vlastnosti:
- DCNOS CLI, QoS (8 front), 16/8K MAC, 2K/1K ACL, Store&forward
- 12K/10K Jumbo rámce, 4K VLAN, QinQ (i selective/ flexible), VLAN N:1 translation, protocol/voice/private/ MAC VLAN
- DHCPv6/v4, DHCP snooping, DHCP relay
- LACP (16/8 group, 8 portů), Spanning Tree (rapid, multiple), MRRP, detekce smyček, storm control
- AAA, 802.1x, (VLAN) ACL (IP/MAC/USER), detekce ARP spoofing, Radius, TACACS+
- Podpora pro triple play řešení… QoS 8 front/port, správa šířky pásma, DSCP (re)marking, 802.1p, ToS
- Multicast: IGMP snooping, MVR, MLD snooping, DCSCM
- Port/CPU mirroring/RSPAN, sFLOW, SNMP/SYSLOG, CLI-SSH
Dostupné modely:

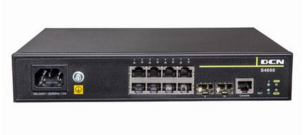

S46000-10P-Sl
- napájecí a datové porty dostupné z přední části
- přepínací kapacita/propustnost: 20Gbps/14,88Mpps
- 8xGE porty + 2x100/1000SFP
- pasivní chlazení
- 1,1kg, 250mm x 180mm x 43.6mm, spotřeba 20W
S4600-10P-P-SI
- 8xGE PoE+ porty + 2x100/1000SFP
- přepínací kapacita/propustnost: 20Gbps/14,88Mpps
- PoE budget 124W, podpora 802.3af/at
- pasivní chlazení
- napájecí a datové porty dostupné z přední části
- 3,5kg, 330mm x 43.6mm x 230mm, spotřeba 144W

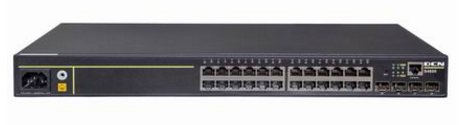

S4600-28P-SI
- 24xGE porty + 4x100/1000SFP
- přepínací kapacita/propustnost: 56Gbps/41,7Mpps
- pasivní chlazení
- napájecí a datové porty dostupné z přední části
- 2,4kg, 442mm x 43.6mm x 280mm, spotřeba 20W

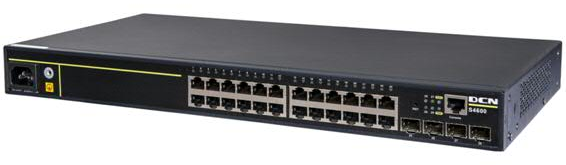

S4600-28P-P-SI
- 24xGE PoE+ porty + 4x100/1000SFP
- přepínací kapacita/propustnost: 56Gbps/41,7Mpps
- aktivní chlazení
- napájecí a datové porty dostupné z přední části
- PoE budget 370W, podpora 802.3af/at
- 5,3kg, 442mm x 43.6mm x 280mm, spotřeba 390W

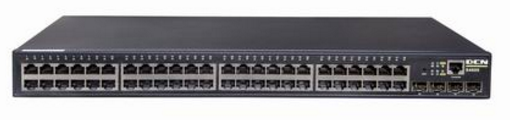

S4600-52P-SI
- 48xGE porty + 4x100/1000SFP
- přepínací kapacita/propustnost: 104Gbps/77,4Mpps
- aktivní chlazení
- 4,7kg, 442mm x 220mm x 43.6mm, spotřeba 40W
Detailní přehled parametrů řady S4600:
| Item | S4600-28P-P-SI | S4600-28P-PL-SI | S4600-10P-P-SI | |
|---|---|---|---|---|
| Ports | 24 x 10/100/1000Base-T + 4 x 100/1000Base-X (SFP) | 24 x 10/100/1000Base-T + 4 x 100/1000Base-X (SFP) | 8 x 10/100/1000Base-T + 2 x 100/1000Base-X (SFP) | |
| Performance | ||||
| Switching Capacity | 56Gbps | 56Gbps | 20Gbps | |
| Forwarding Rate | 41.7Mpps | 41.7Mpps | 14.88Mpps | |
| MAC ADDRESS | 16K | 16K | 8K | |
| Jumbo Frame | 12K | 12K | 10K | |
| ACL Table | 2048 | 2048 | 1408 | |
| Queues per port | 8 | 8 | 8 | |
| VLAN TABLE | 4K | 4K | 4K | |
| Physical | ||||
| Dimension(W×H×D) | 442mm x 280mm x 43.6mm | 442mm x 280mm x 43.6mm | 330mm x 230mm x 43.6mm | |
| weight | 5.3kg | 4.9kg | 3.5kg | |
| Power Input | 100~240VAC, 50~60Hz | 100~240VAC, 50~60Hz | 100~240VAC, 50~60Hz | |
| Power Consumption | 390W | 205W | 144W | |
| Cooling | Active | Active | Passive | |
| Temperature | Working 0°C~50°C, Storage -40°C~70°C | |||
| Relative Humidity | 5%~95%,non-condensing | |||
| EMC Safety | CE, RoHS | |||
| POE | IEEE 802.3af POE(15.4W) IEEE 802.3at POE+ (30W) PoE output 370w |
IEEE 802.3af POE(15.4W) IEEE 802.3at POE+ (30W) PoE output 185w |
IEEE 802.3af POE(15.4W) IEEE 802.3at POE+ (30W) PoE output 124w |
|
| Main Features | ||||
| Forwarding | Storage and Forwarding | |||
| VLAN | Port-based VLAN, IEEE802.1Q, private VLAN, Protocol VLAN, Voice VLAN, MAC VLAN Normal QinQ, Selective QinQ, Flexible QinQ VLAN Translation, N:1 VLAN Translation |
|||
| DHCP | IPv4/IPv6 DHCP Client,IPv4/IPv6 DHCP Relay Option 82, Option 37/38 IPv4/IPv6 DHCP Snooping,IPv4/IPv6 DHCP Server |
|||
| Reliability | Spanning Tree | 802.1D STP, 802.1W RSTP, 802.1S MSTP Root Guard, BPDU Guard, BPDU Forwarding |
||
| LACP | 16 groups / 8 ports | 8 groups / 8 ports | ||
| L2 Ring Protection | MRPP ITU-T G.8032 Loopback Detection Fast Link |
|||
| Security | Storm Control based on packets and bytes Port Security, MAC Limit based on VLAN and Port Anti-ARP-Spoofing , Anti-ARP-Scan, ARP Binding ND Snooping DAI IEEE 802.1x Authentication, Authorization, Accounting Radius, TACACS+ |
|||
| Multicast | IGMP v1/v2/v3 snooping, IGMP Fast leave MVR MLD v1/v2 snooping IPv4/IPv6 DCSCM |
|||
| L4 feature | QoS | 8 Queues Per Port Bandwidth Control Flow Redirect Classification based on ACL, VLAN ID, COS, TOS, DSCP, Policing Based on Port and VLAN Single Rate single barrel double color for Policing Remark DSCP, COS/802.1p, Precedence, TOS SP, WRR, SWRR, DWRR for Scheduling Match the IP fragmentation of message |
||
| ACL | IP ACL, MAC ACL, MAC-IP ACL, User-Defined ACL Time Range ACL ACL on VLAN interface |
|||
| Maintenance and Operation Management | TFTP/FTP CLI, Telnet, Console Web/SSL (IPv4/IPv6) SSH (IPv4/IPv6) SNMPv1/v2c/v3 SNMP Trap Public & Private MIB interface RMON 1,2,3,9 Ping, Trace Route Radius Authentication Syslog (IPv4/IPv6) SNTP/NTP (IPv4/IPv6) Dual IMG, Multiple Configuration Files Port Mirror, CPU Mirror, RSPAN sFlow (S4600-28P/52P-SI) OAM EFM VCT, DDM ULDP(like Cisco UDLD) LLDP/LLDP MED |
|||
| Green Energy | IEEE 802.3az (Energy Efficient Ethernet) Fanless (10P and 28P) LED Shut-off |
|||
| Item | S4600-52P-SI | S4600-28P-SI | S4600-10P-SI | |
|---|---|---|---|---|
| Ports | 48 x 10/100/1000Base-T + 4 x 100/1000Base-X (SFP) | 24 x 10/100/1000Base-T + 4 x 100/1000Base-X (SFP) | 8 x 10/100/1000Base-T + 2 x 100/1000Base-X (SFP) | |
| Performance | ||||
| Switching Capacity | 104Gbps | 56Gbps | 20Gbps | |
| Forwarding Rate | 77.4Mpps | 41.7Mpps | 14.88Mpps | |
| MAC ADDRESS | 16K | 16K | 8K | |
| Jumbo Frame | 12K | 12K | 10K | |
| ACL Table | 2048 | 2048 | 1408 | |
| Queues per port | 8 | 8 | 8 | |
| VLAN TABLE | 4K | 4K | 4K | |
| Physical | ||||
| Dimension(W×H×D) | 442mm x 220mm x 43.6mm | 442mm x 220mm x 43.6mm | 250mm x 180mm x 43.6mm | |
| weight | 4.7kg | 2.42kg | 1.1kg | |
| Power Input | 100~240VAC, 50~60Hz | 100~240VAC, 50~60Hz | 100~240VAC, 50~60Hz | |
| Power Consumption | 40W | 20W | 20W | |
| Cooling | Active | Passive | Passive | |
| Temperature | Working 0°C~50°C, Storage -40°C~70°C | |||
| Relative Humidity | 5%~95%,non-condensing | |||
| EMC Safety | CE, RoHS | |||
| Main Features | ||||
| Forwarding | Storage and Forwarding | |||
| VLAN | Port-based VLAN, IEEE802.1Q, private VLAN, Protocol VLAN, Voice VLAN, MAC VLAN Normal QinQ, Selective QinQ, Flexible QinQ VLAN Translation, N:1 VLAN Translation |
|||
| DHCP | IPv4/IPv6 DHCP Client,IPv4/IPv6 DHCP Relay Option 82, Option 37/38 IPv4/IPv6 DHCP Snooping,IPv4/IPv6 DHCP Server |
|||
| Reliability | Spanning Tree | 802.1D STP, 802.1W RSTP, 802.1S MSTP Root Guard, BPDU Guard, BPDU Forwarding |
||
| LACP | 16 groups / 8 ports | 8 groups / 8 ports | ||
| L2 Ring Protection | MRPP ITU-T G.8032 Loopback Detection Fast Link |
|||
| Security | Storm Control based on packets and bytes Port Security, MAC Limit based on VLAN and Port Anti-ARP-Spoofing , Anti-ARP-Scan, ARP Binding ND Snooping DAI IEEE 802.1x Authentication, Authorization, Accounting Radius, TACACS+ |
|||
| Multicast | IGMP v1/v2/v3 snooping, IGMP Fast leave MVR MLD v1/v2 snooping IPv4/IPv6 DCSCM |
|||
| L4 feature | QoS | 8 Queues Per Port Bandwidth Control Flow Redirect Classification based on ACL, VLAN ID, COS, TOS, DSCP, Policing Based on Port and VLAN Single Rate single barrel double color for Policing Remark DSCP, COS/802.1p, Precedence, TOS SP, WRR, SWRR, DWRR for Scheduling Match the IP fragmentation of message |
||
| ACL | IP ACL, MAC ACL, MAC-IP ACL, User-Defined ACL Time Range ACL ACL on VLAN interface |
|||
| Maintenance and Operation Management | TFTP/FTP CLI, Telnet, Console Web/SSL (IPv4/IPv6) SSH (IPv4/IPv6) SNMPv1/v2c/v3 SNMP Trap Public & Private MIB interface RMON 1,2,3,9 Ping, Trace Route Radius Authentication Syslog (IPv4/IPv6) SNTP/NTP (IPv4/IPv6) Dual IMG, Multiple Configuration Files Port Mirror, CPU Mirror, RSPAN sFlow (S4600-28P/52P-SI) OAM EFM VCT, DDM ULDP(like Cisco UDLD) LLDP/LLDP MED |
|||
| Green Energy | IEEE 802.3az (Energy Efficient Ethernet) Fanless (10P and 28P) LED Shut-off |
|||
